How to Choose Between a Flat Bottom Pouch & Stand Up Pouch?

The stand up pouch and flat bottom pouch may look alike, but they are completely different in structure. They differ when it comes to:

• Stability

• Branding space

• Capacity

Put these pouches on a shelf, and most people won’t be able to tell the difference. Stand up and flat bottom pouches both rest vertically on their own, offering a clean, modern look that plays a critical role in attracting customers. However, once filled with products, their structural differences become immediately apparent.

A flat bottom pouch features a completely flat, square base that mimics the structure of a traditional box. It maintains its rigid shape under heavy weight, providing maximum shelf visibility. A stand up pouch relies on a bottom gusset that expands when filled. While it also stands upright, its profile becomes softer, rounder, and less rigid than a flat bottom pouch.

Picking between the two formats can be challenging. Your final decision should depend on:

• How heavy is your product?

• How much space do you need for branding?

• What is your budget?

• What are your product freshness requirements?

This thorough guide will help you understand the actual difference between a flat bottom pouch vs stand up pouch. We’ll also discuss how each of them functions once they’re loaded and closed.

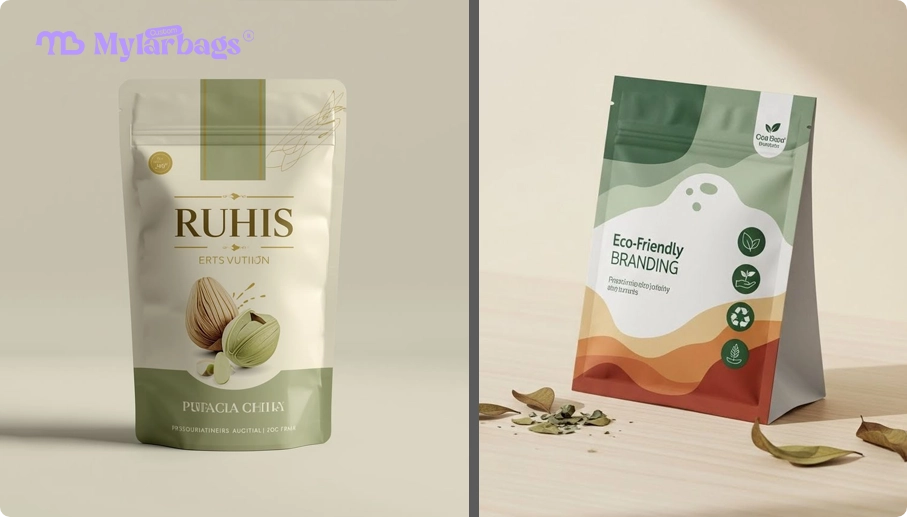

Flat Bottom vs. Stand-Up Pouch: A Quick Comparison

Before getting into details, take a look at this side by side comparison table to quickly evaluate how flat bottom and stand up pouches differ when it comes to shape, structural stability, printable surface area, and ideal use cases.

It’s a solid starting point for you, which will guide you towards understanding both of these flexible packaging solutions.

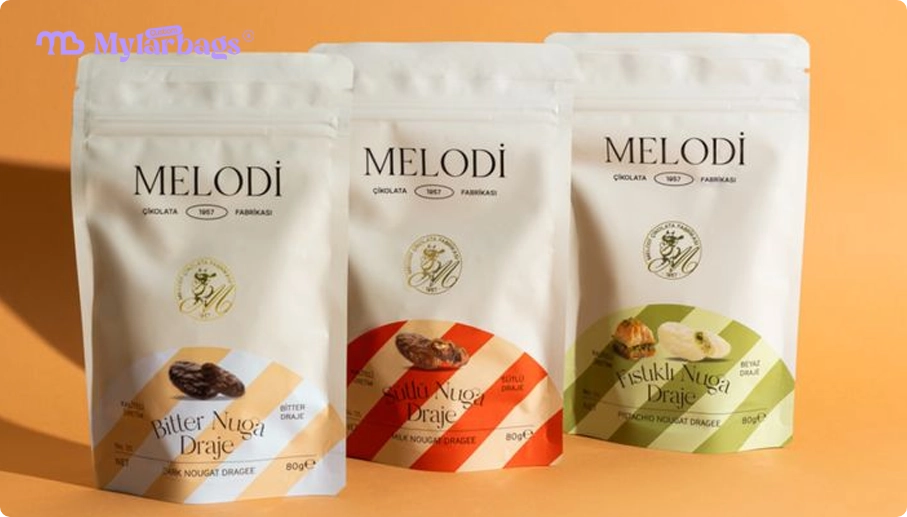

What is a Stand Up Pouch?

A stand up pouch is a flexible packaging format which is developed to stand upright on retail shelves on its own bottom. It can only stand up straight on its base when filled with the product.

They do not require external support or a secondary container to stand. This key feature distinguishes them from traditional flat pouches and pillow pouches. Stand up pouches achieve their reliable shelf stability entirely through their engineered structure.

The structural features of stand up pouches include:

• A bottom gusset that expands when filled with product.

• Front and back panels for branding and printing product information.

• Side and top seals that protect product integrity and reduce puncture risks.

The bottom gusset often comes in two different designs, such as:

• Doyen gusset (round bottom)

• K seal (plow bottom)

Many brand owners prefer the Doyen gusset, which is known as a round-bottom design. They use it as their primary base structure for self-standing flexible packaging. This popular configuration features a separate, high strength bottom panel that is heat sealed along a continuous, curved arc to the front and back main panels.

When the pouch is filled with product volume, this flexible arc expands downward and outward to create a stable, load bearing base. The K-seal bottom structure operates on a similar functional principle; however, instead of using an isolated bottom panel, it incorporates angled, stress relieving seals at the lower corners of the pouch body to reinforce heavy, bulky contents and prevent seam rupture.

How Stand-up Pouches Are Made

Stand up pouches are made from a multi layer structure, typically constructed by laminating two to three specialized film layers together using high performance adhesives.

PET (polyethylene terephthalate) is used as the outer layer that offers a smooth, printable surface and resists scratches. Aluminium foil or VMPET is used as the middle layer that works to block external factors.

Last but not least, stand up pouches feature an inner food safe LLDPE (linear low density polyethylene) or CPP (cast polypropylene) that keeps products safe and fresh for a long time. This layer makes the pouch secure for direct food contact. The construction makes stand up pouches a top choice among different industries.

Types of Stand-Up Pouches Packaging

Stand up pouches can be customized to meet different packing requirements. They come in different types, including:

• Spout Pouches

• Resealable Pouches

• Window Pouches

• Die Cut Pouches

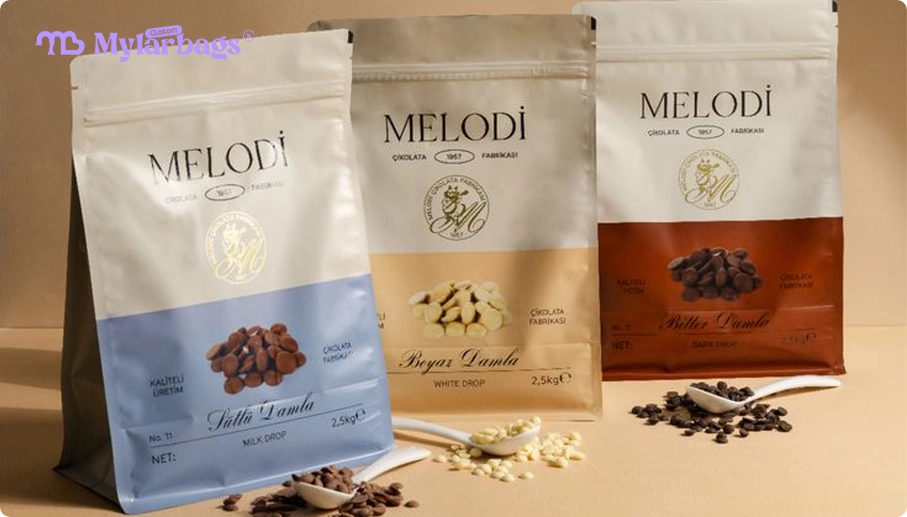

What is a Flat Bottom Pouch?

Flat bottom pouches are created to stand upright on retail shelves. They are famous for their box like appearance. It's a type of flexible packaging that features a flat, rectangular base and vertical side gussets. This allows the bag to stand upright securely on its own.

The structure of a flat bottom pouch includes:

• A square bottom panel.

• Front, back, and two side panels for printing and branding.

• A broad pouch opening.

• A box like shape.

Flat bottom packaging utilizes a multi web and high barrier laminate construction engineered to replicate the stable, rigid geometry of a traditional box. This robust design creates a high impact, five panel visual footprint that commands immediate attention on competitive retail shelves.

By combining freestanding structural stability with maximum graphic surface area, this pouch format improves product presentation while ensuring dependable outer protection during handling and display.

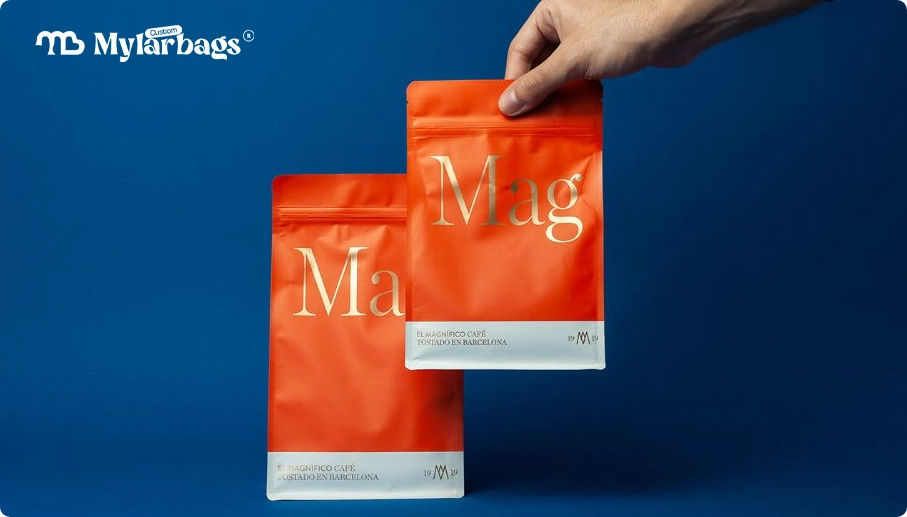

How Flat Bottom Pouches Are Made?

Flat bottom pouches are crafted through a multi step and precise manufacturing process that combines multi layer film lamination, exact gusset folding, high temperature thermal sealing, and high resolution custom printing.

They are constructed using specialized high barrier materials like light impermeable aluminum foil or food grade polyethylene (PE).

High performance composite barrier layers create an airtight, hermetic, and moisture proof shield. This multi layer film structure effectively maintains maximum product freshness. By actively preventing environmental degradation and photo oxidation, this high barrier solution preserves product integrity and significantly extends total shelf life during storage and retail distribution.

Specialized machines are used to fold the side gussets and shape the flat panel from separate webs of material. The gusset expands into a stable, square shape when filled with a product.

Businesses can also add resealable zippers, one way degassing valves, tear notches, and hang hole features to make their packaging convenient to use.

Brands can also print on all five panels of their flat bottom pouches. They provide so much space for branding and custom printing, which makes them an ideal choice across a wide range of industries. Brands can use them to command attention on competitive retail shelves.

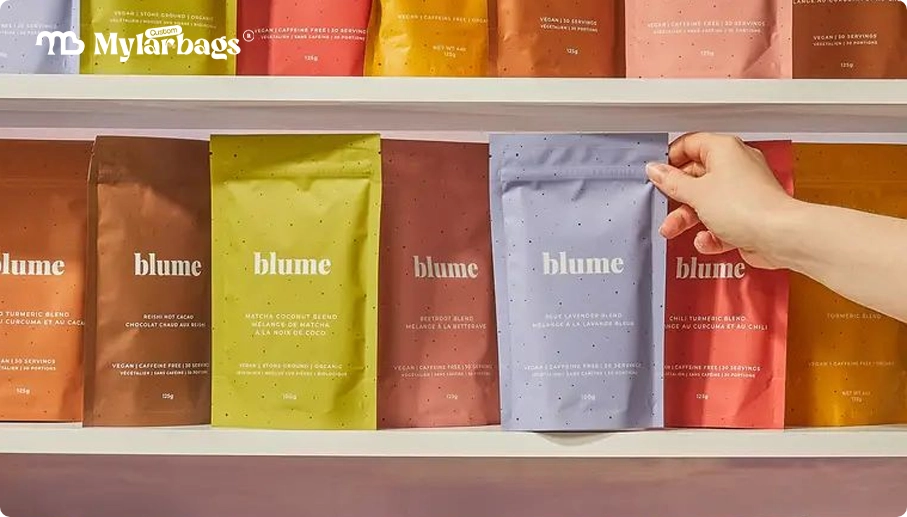

When To Choose Flat Bottom Pouch vs Stand Up Pouch?

Different products need different pouch packaging solutions. The easiest way to decide between flat bottom pouch vs stand up pouch is to determine what you’re packing. Take a quick look at the table below that explains which pouch works for different products:

How to Choose the Right Pouch Style?

Choosing the right pouch style is what matters when it comes to making your products look professional on retail shelves while ensuring the products inside are perfectly contained.

The decision comes down to considering several aspects, such as:

Product Weight and Density

Measure your product weight and density first. Dense or bulky items might require reinforced gussets or box-like packaging solutions such as flat bottom pouches. Liquid products can be filled in stand up pouches featuring a secure spout at the top. It is important to leave headspace inside the pouch for a clean seal.

Shelf Stability & Shelf Retention

A stand-up pouch is an ideal choice for lightweight or fine pour products where the bottom presses open. It provides higher physical stability when filled with medium weight products. Flat bottom mylar bags improve a product’s shelf stability. They offer strong barrier protection and guarantee freshness for different products. Pick the one that aligns with your specific requirements.

Filling and Sealing Requirements

Select a pouch style that integrates seamlessly with your existing packaging equipment. Whether you are running low-volume manual filling stations or high speed automated packaging machinery, functional features like resealable zippers, one way degas valves, or precision dispensing spouts interact differently with automated machinery.

Choosing a structurally compatible pouch format ensures reliable line performance. It helps prevent mechanical jams and maximizes overall throughput across your entire manufacturing operation.

Custom Mylar Bags offers mylar packaging solutions that suit your different product and branding needs.

Final Thoughts

Want maximum support for heavier products with premium shelf visibility, and extra room for branding? Choose flat bottom pouches. Choose stand up pouches if you need flexibility, smaller runs, and a spout. Both of these pouches work differently under different conditions. Flat bottom pouches and stand-up pouches are both produced to do a perfect job no matter what you’re filling.

Make your final decision based on your product needs. Run a fill test to check if the pouch holds its shape when packed with the product. Reach out to Custom Mylar Bags with any questions you have related to your specific product needs. Our team will help you find the perfect solutions that will get your product to stand out on competitive retail shelves.

FAQs

Which pouch is more suitable for holding heavier products?

A flat bottom pouch is the best choice when it comes to packing heavier products. It provides a wider base with extra side gussets that spread the weight evenly inside the pouch, ensuring the pouch remains stable on shelves.

Are stand up pouches puncture resistant?

Yes. Stand up pouches are highly resistant to punctures. Their multi-layered construction makes them a durable choice for safe and long term product storage.

Which pouch packaging provides better shelf visibility?

Flat bottom pouches and stand up pouches are both engineered to deliver the most satisfactory shelf visibility. Many brands choose flat bottom pouches as they offer superior structural stability and prevent leaning on shelves.

Which pouch is a suitable choice for liquid products?

A stand up pouch is the best choice for packaging liquid products. They feature a spout at the top that allows effortless dispensing of the liquid or semi liquid product. It can be securely resealed for later use.
